Rancher with k3d + Treafik

By Raúl on Dec 4, 2023
Image courtesy of unsplash

While hacking around Rancher Desktop I wanted to check what are the resources that compose a single node cluster.

k3d cluster create k3d-my-singlenode-cluster

Untitled

That new cluster spans over two docker containers

Untitled

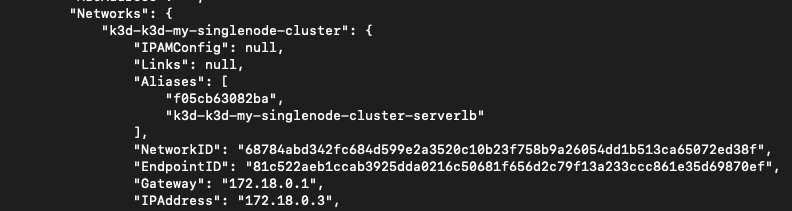

The first container k3d-k3d-my-singlenode-cluster-serverlb is based on the ghcr.io/k3d-io/k3d-proxy:5.6.0 proxy image.

It seems to be basically a nginx-proxy exposing ports 6443 and 80

Untitled

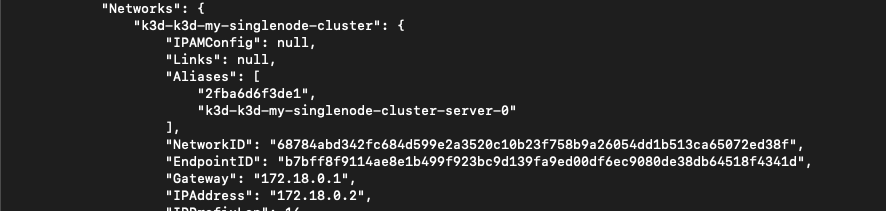

The second one k3d-k3d-my-singlenode-cluster-server-0 is based on the docker.io/rancher/k3s:v1.27.4-k3s1 k3s image. That’s the master / control-plane and I guess also acts as the worker

Untitled

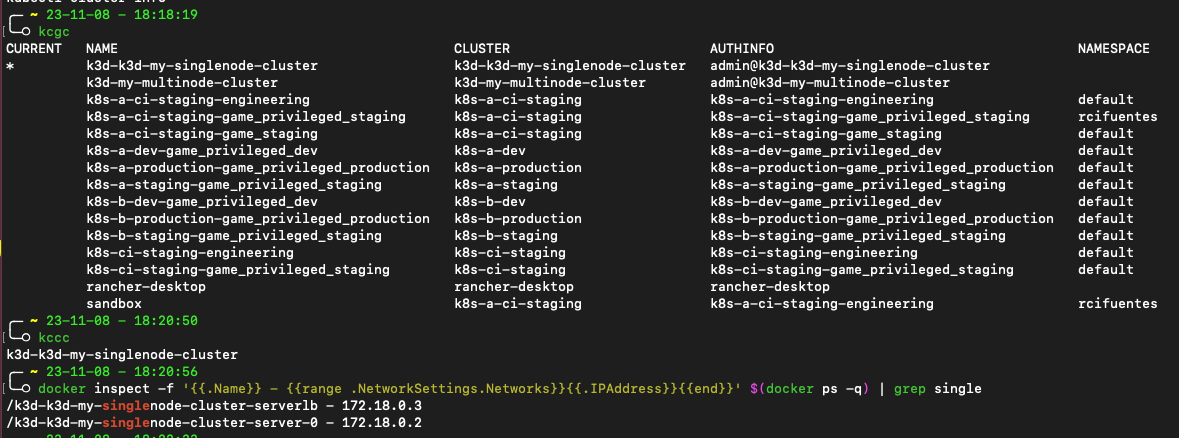

In terms of networking it opens

Untitled

172.18.0.2 for control-plane/master (running 7 pods) and 172.18.0.3 for load balancer.

Now, from Kubernetes perspective, there is just one cluster running one single node grouping 7 containers.

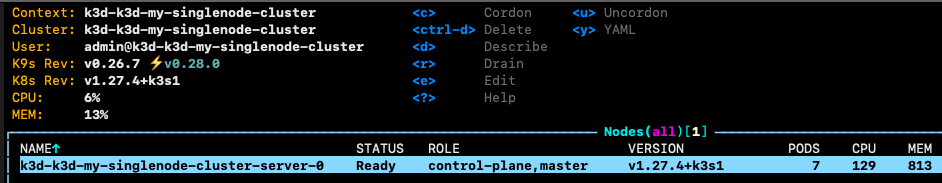

Nodes

Untitled

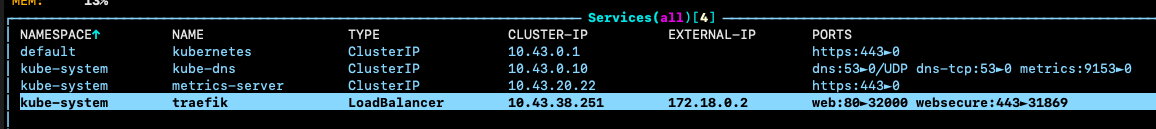

Services

There’s one called traefix that has the external ip associated with this control-plane node and some port mappings

Untitled

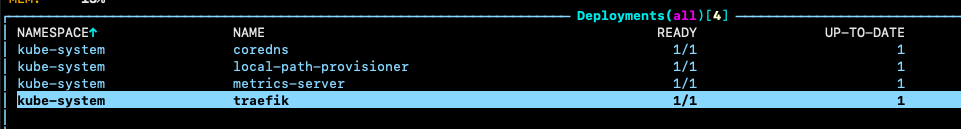

Deployments

Untitled

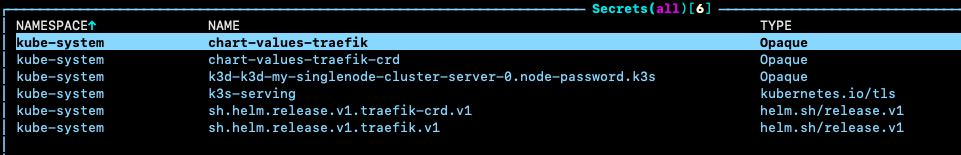

External secrets

Untitled

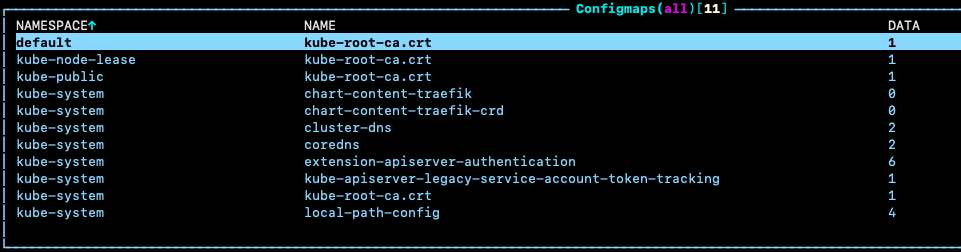

Config maps

Untitled

Apparently, other k8s objects like Scaled objects, Service account, and Virtual service remain untouched.
